Empire Forced Air TV Kit (HMFATV)

Use This TV Kit to Safely Mount a Television Above Your Fireplace

Curling up in front of a fire while watching TV sounds like a perfect way to spend your break, but your fireplace clearances won’t allow it.

Mounting a television above your gas fireplace can cause irreparable damage.

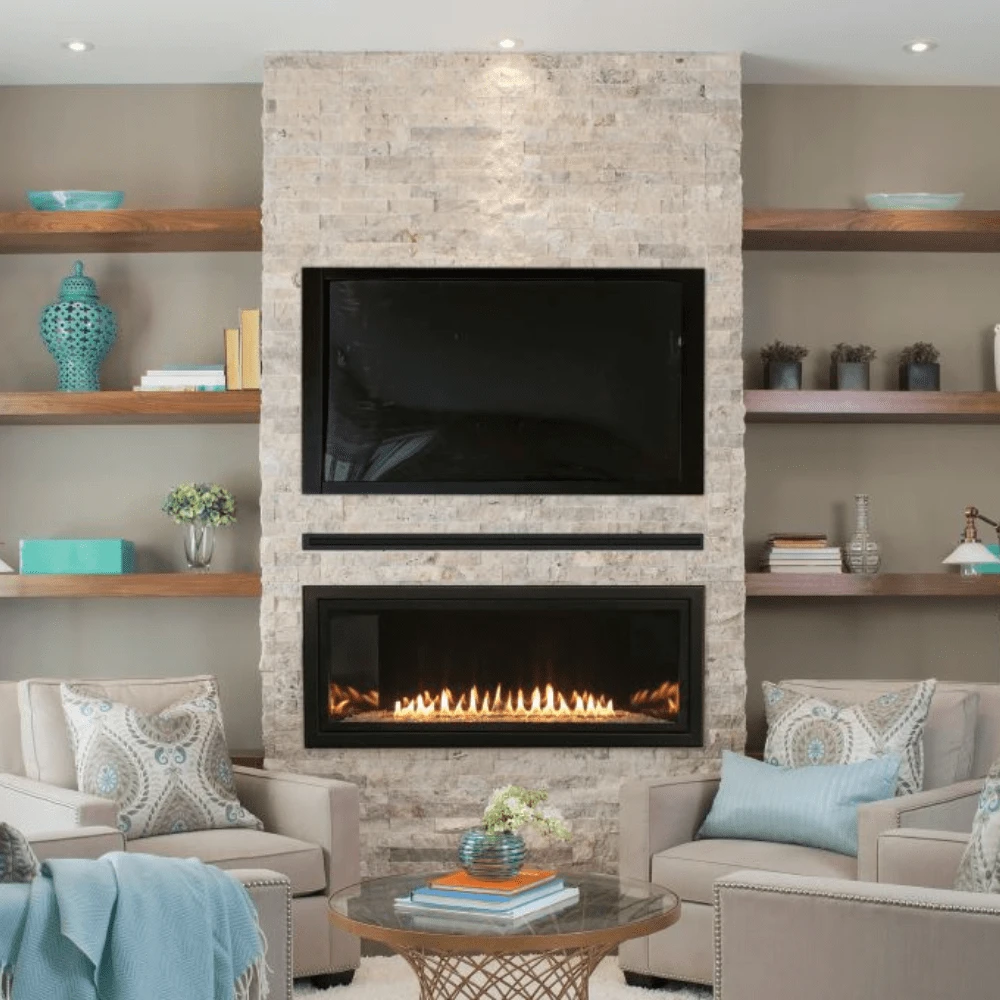

Installing this TV Kit will allow you to mount it safely above the Empire Boulevard Gas Fireplace. Your wall-mounted television is protected from heat damage as the snap-disc inside the firebox automatically turns on a blower once it detects heat. For added protection, a limit switch will turn off the unit in case of power loss or blower failure.

A qualified technician must do all the wiring needed to install this kit. The Forced Heat Management System, Heat Transfer Kit, and Flex Vent Kit are required to complete installation.

Make your fireside experience better with your favorite shows to enjoy. Order today and take advantage of our free shipping offer!

What’s Included: Limit Switch Plate, J-box Cover Plate, Limit Switch, Snap-Disc, Wire Harness, Junction Box, Wire Bushing, Clips, Romex Connector, Zip Tie, Hardware Kit, and User’s Manual

---

FEATURES:

• Forced Air TV Kit
• Compatible with Empire Boulevard Fireplaces
• Requires the Forced Heat Management System, Heat Transfer Kit, and Flex Vent Kit

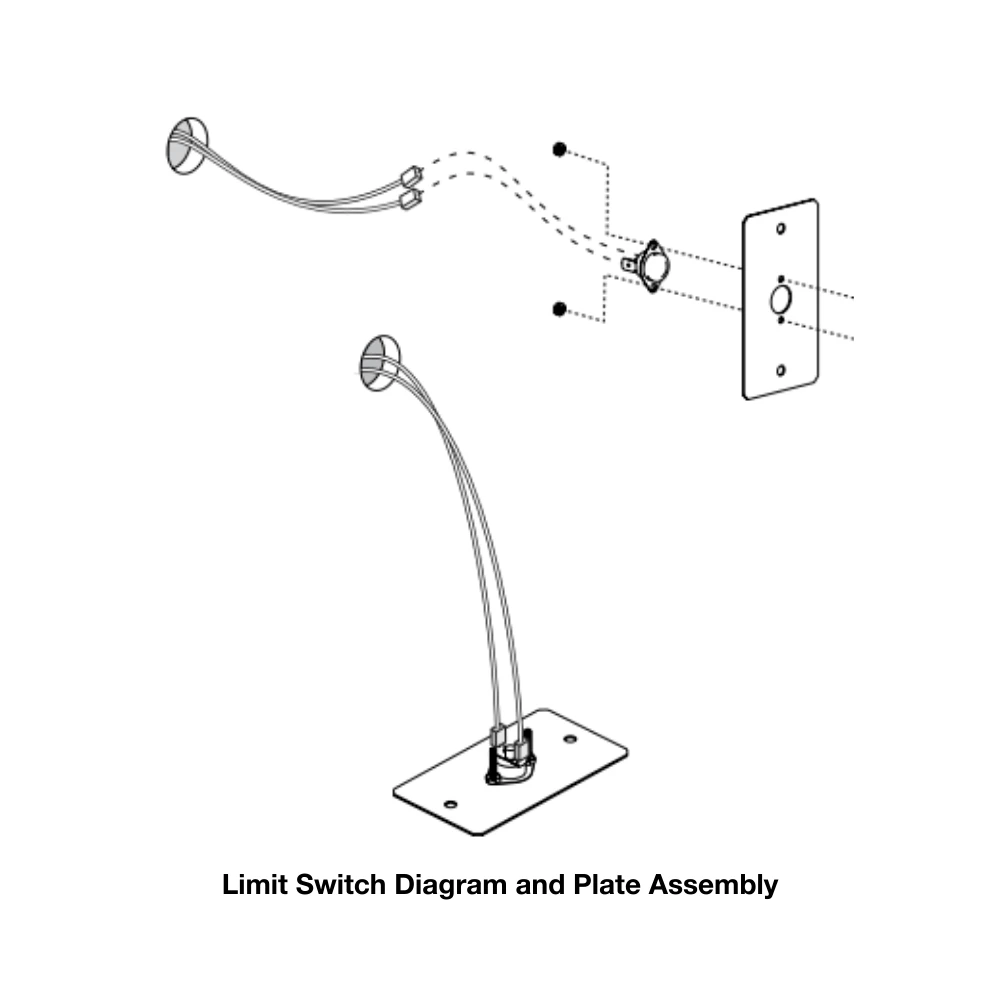

• Limit Switch shuts off the unit once it detects 150° F as an added prevention for heat damage
• UL Listed

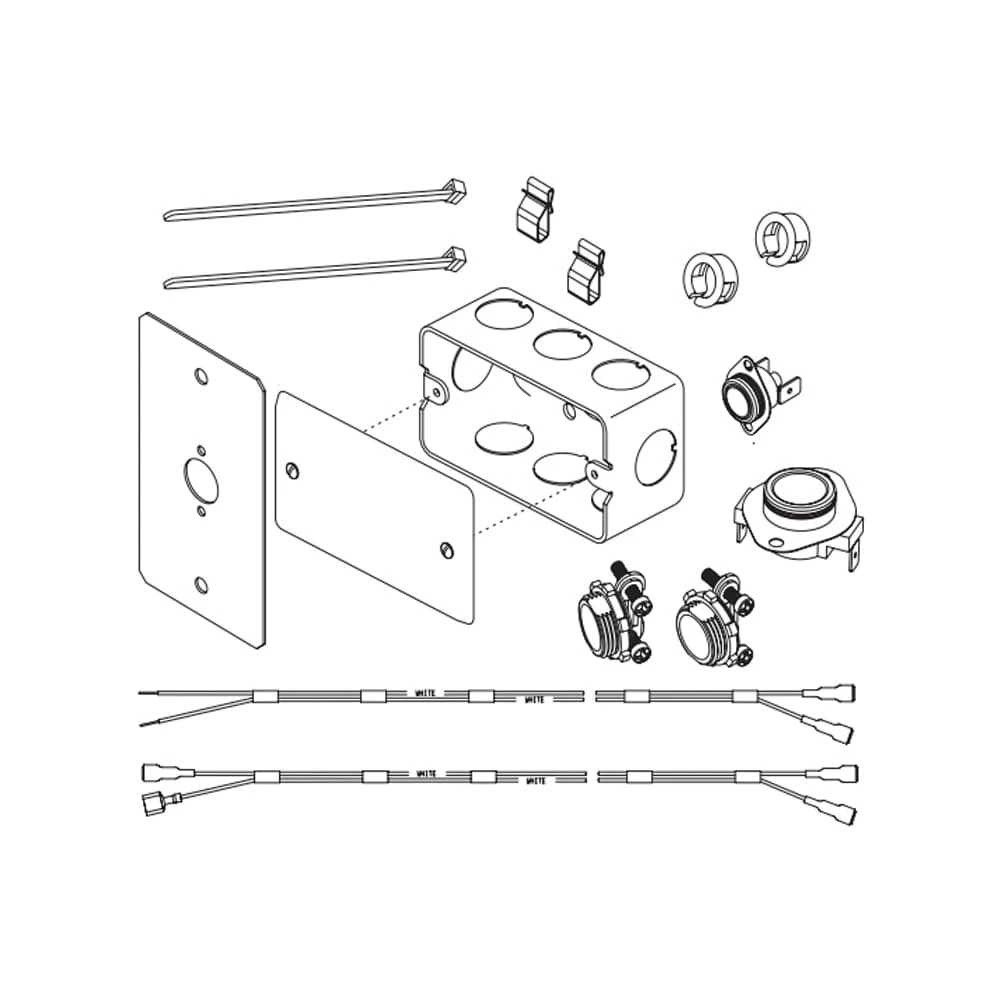

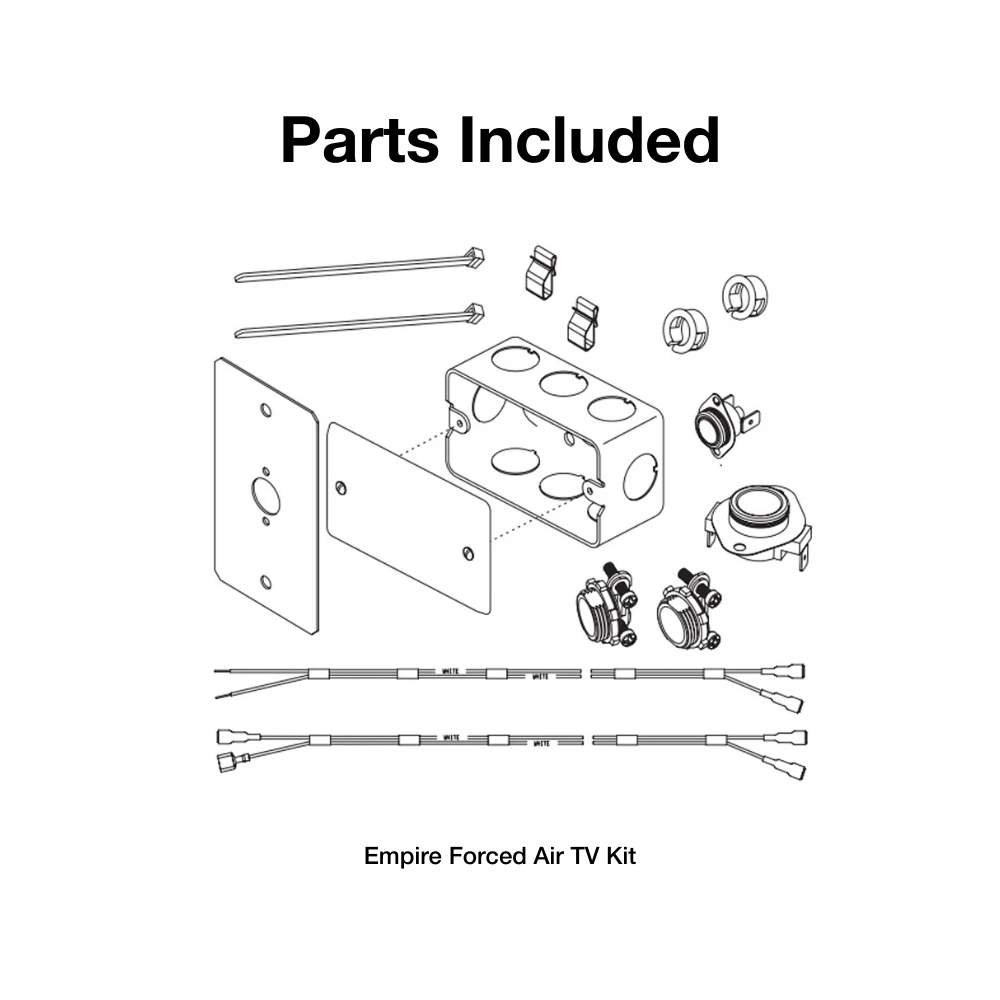

What’s in the Box:

• Hardware Kit – 1 set
• Limit Switch Plate – 1 pc.
• J-box Cover Plate – 1 pc.
• Limit Switch – 1 pc.
• Snap-Disc – 1 pc.
• Wire Harness – 2 pcs.
• Junction Box – 1 pc.
• Wire Bushing – 2 pcs.
• Clips – 2 pcs.
• Romex Connector – 1 pc.
• Zip Tie – 1 pc.
• User’s Manual – 1 pc.

---
